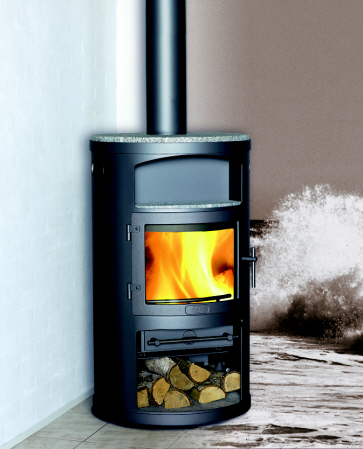

Scan-Line 15
Scanline line drawing1

The Scanline 15 is a large round form stove with a large panoramic curved window giving a wide and unimpeded view of the fire.

Made from steel with a quality made cast iron door this stove gives a useful 7-10KW of heat output with efficiencies up to 80% and a CO rating of only 0.08%.

Available in completely steel or with an option of a granite top plate and warming shelf.

A built-in log store under the slide in ashpan completes this impressive stove

CE certified and approved to EN13240

Please click here for price list

Nominal heat output KW

7

Output range KW

3-10

Heating area  m2

30-150

Flue outlet mm

150

Weight kg

160

Firing load kg

2,5

Min. chimney draw

0,11

A = 260mm

B= 600mm

D= 600mm

H= 1025mm

C= 895mm

Weight = 160KG
