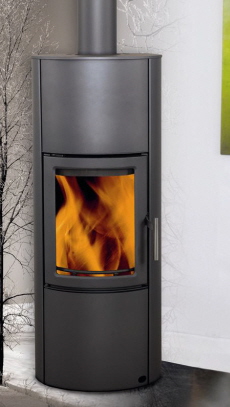

ScanLine 580 Aqua

The unique Scanline 580 Aqua is the latest addition to the ever popular 500 range and features a high efficiency 3KW water heat exchanger concealed into the top of the stove. The boiler has been designed with vertical tubes to increase surface area giving high efficiency and rapid recovery.

A tall stove measuring 1265mm in height provides both radiant heat from the efficient firebox as well as boiler heat to either your existing central heating system or to heat an adjacent room or heat the water in your home.



Another unique, innovative design from Heta in Denmark leaders in design, technology and creative thinking.

Fully tested and approved to EN13240

Please click here for price list

Nominal heat output KW

12

Output range KW

3-15

Heating area  m2

30-225

Flue outlet mm

150

Weight kg

160

Firing load kg

2

CO %

0.07

Min. chimney draw

0,10

Scanline line drawing

A = 161mm

B= 504mm

D= 494mm

H= 1265mm

C= n/a (only top flue)

Weight = 160KG
